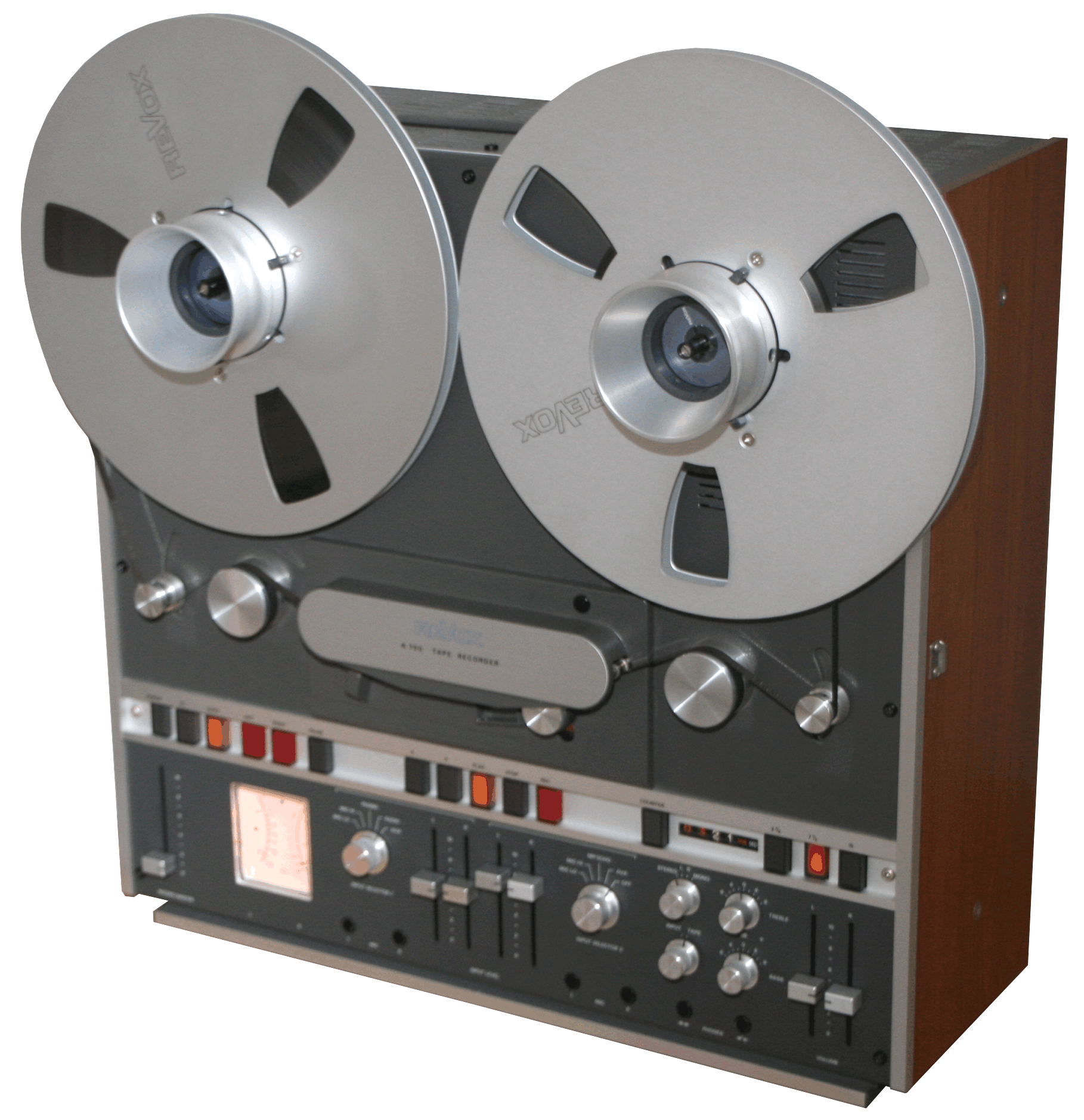

Revox A700
built since 1973
From 1973, Revox produced the A700, which later became the Studer A67.
With the two tape tension scales, the three tape speeds, the quartz-controlled speed control and the sine-controlled winding motors, the device already has some features of the Studer studio devices.
Technical data
drive

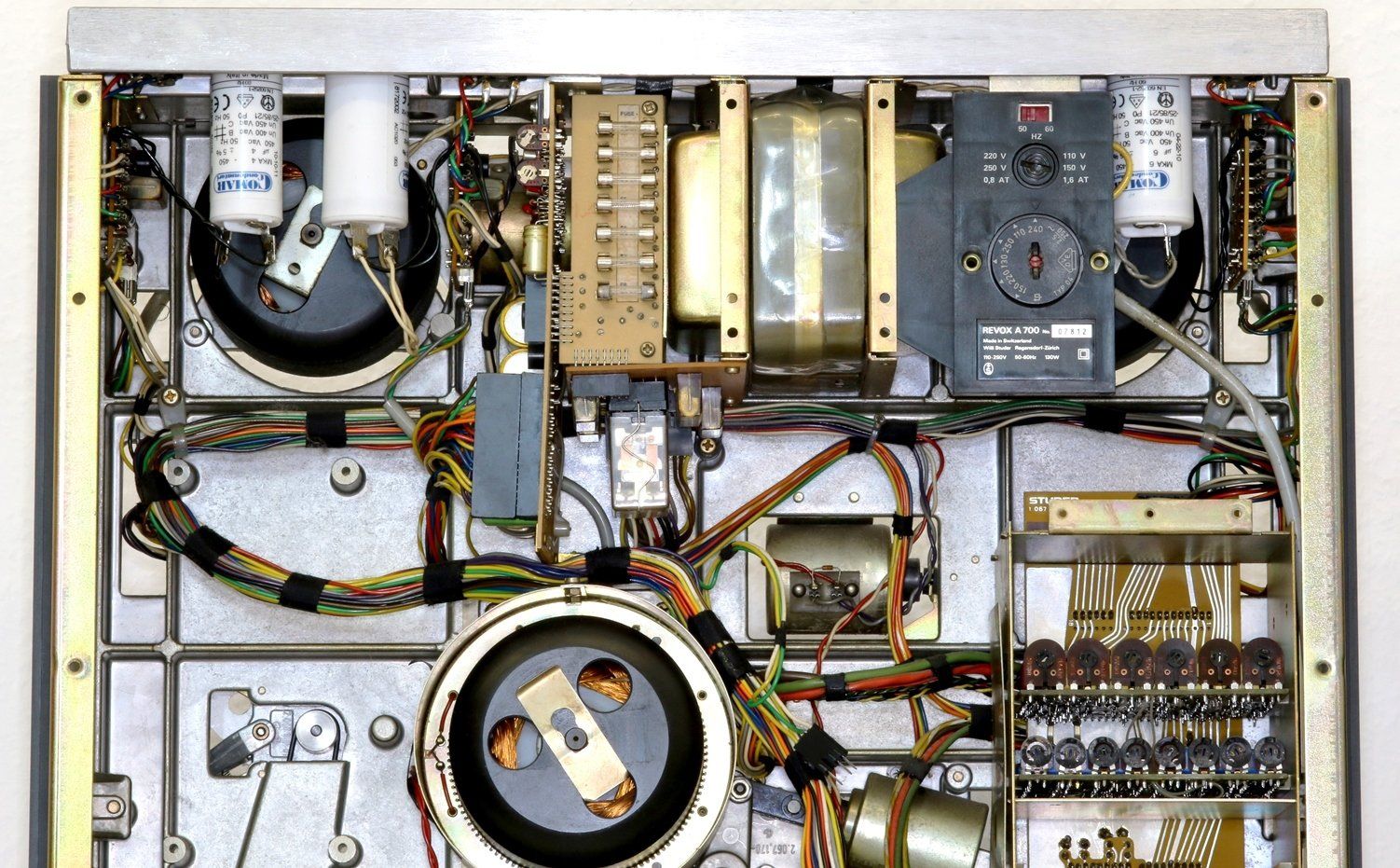

Three-motor turntable, quartz-synchronized sound motor, which instantly sets the desired speed regardless of temperature, with no temperature drift. Two electronically controlled spool motors, controlled by two tape tension scales. Three speeds (9.5 cm/s, 19 cm/s, and 38 cm/s), 4-channel mixer, preamplifier with phono input, and switching output for power amplifiers.
Belt speed
With speeds of 38 cm/sec, 19 cm/sec, and 9.5 cm/sec, you can play all your older tapes or create recordings for a wide variety of needs. This allows you to create tape-saving voice recordings or high-quality master recordings.
Pitch fluctuations
better than 0.06% at 38 cm/sec,
better than 0.08% at 19 cm/sec and
better than 0.1% at 9.5 cm/sec.
With our pressure rollers for the Revox A700, all values of pitch fluctuations are exceeded!
counter

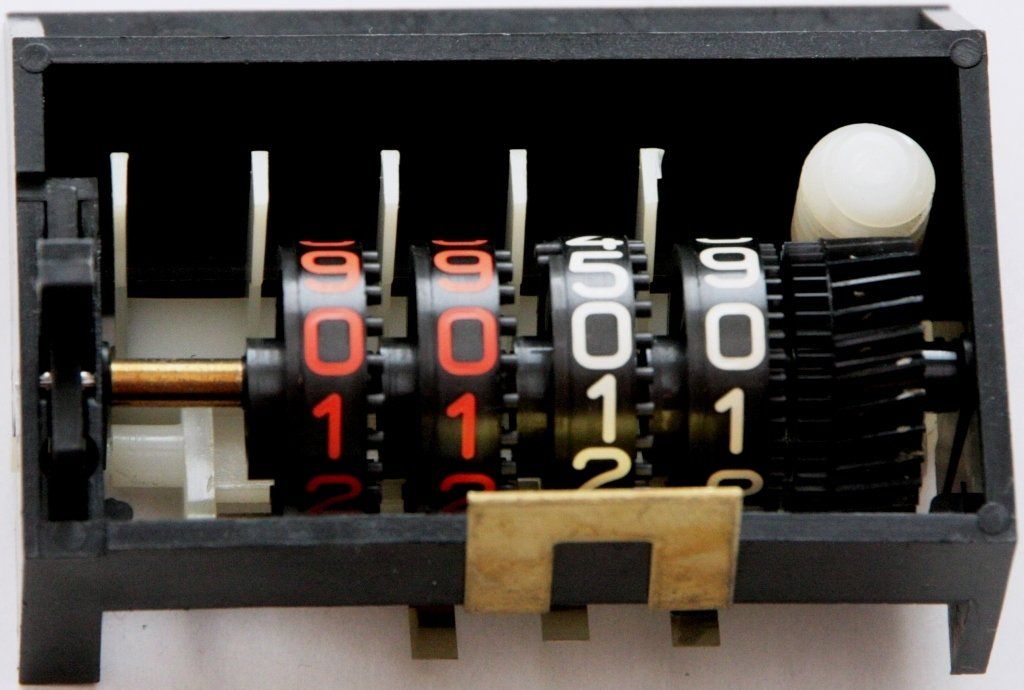

Mechanical, 4-digit real-time display in seconds and minutes, but only at 19 cm/sec. At 9.5 cm/sec, you must multiply the display by 2; at 38 cm/sec, you must divide by 2.
We can always offer mechanical counters from repair stocks.

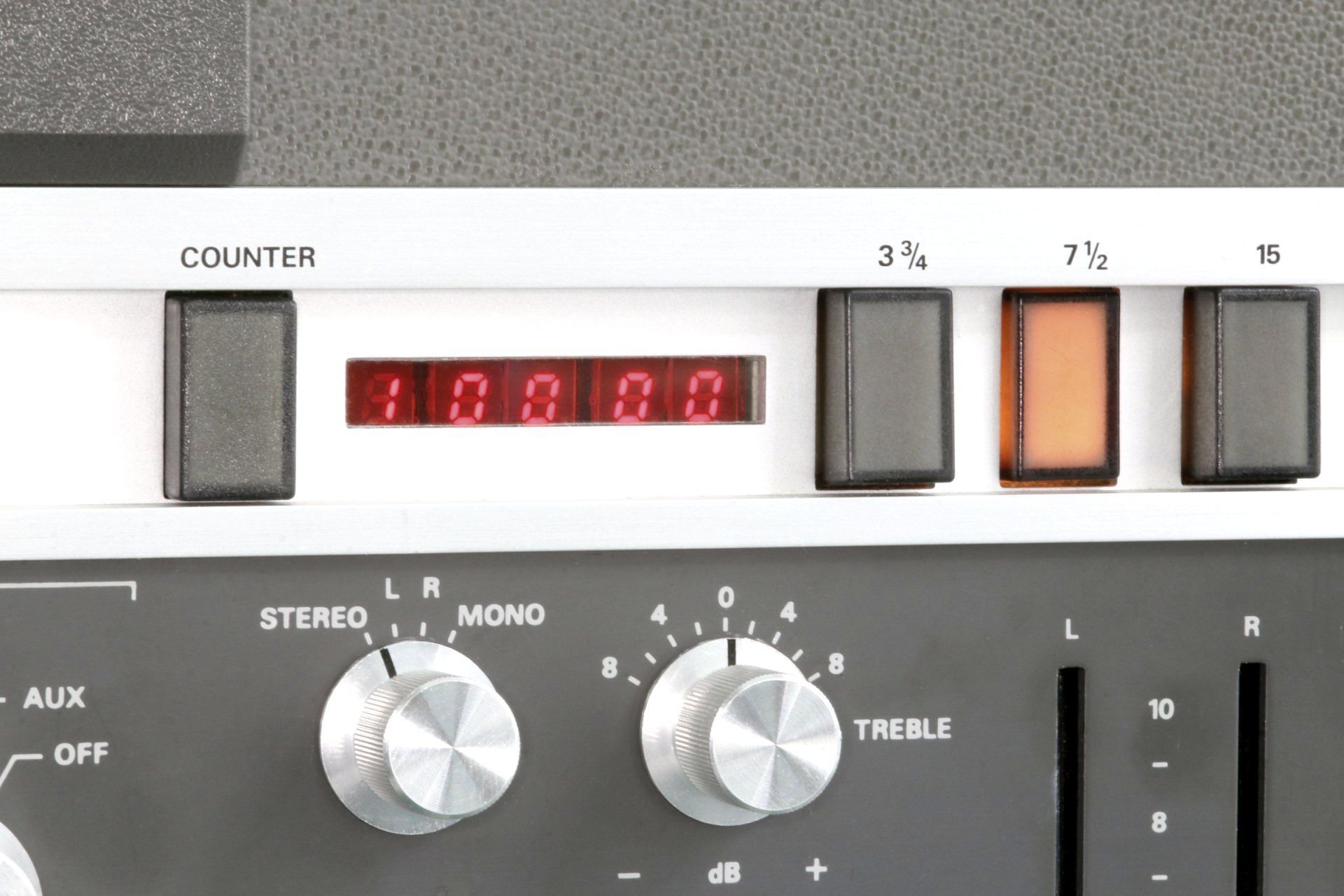

electronic, 5-digit real-time display in hours, minutes and seconds.
For each of the three speeds, the elapsed tape length is displayed in hours, minutes, and seconds. The counter readings are retained even after the Revox A700 is turned off.
dynamics
better than 65 dB at 38 cm/sec
better than 66 dB at 19 cm/sec
better than 63 dB at 9.5 cm/sec
These are all excellent values that the Revox A700 delivers.
Coil size: up to 26.5 cm without switching up to a minimum core diameter of 4 cm
Dimensions: Width 48.3cm, Height 46.2cm, Depth 17.5cm, Weight 24kg
Audioelektronik
19 integrated circuits (ICs), 2 LSI circuits
93 transistors, 92 diodes, 7 bridge rectifiers
Why was this information provided?
There are worse things these days when 1000 W PMPO is advertised and the built-in transformer only delivers a maximum of 10 W!
Level indicator
Level meter (analog): VU meter ASA standard with optical peak value display
Overload indicator: Response threshold: 0VU 6dB (514 nWb /m), response time 10 ms, hold time 0.2 sec.

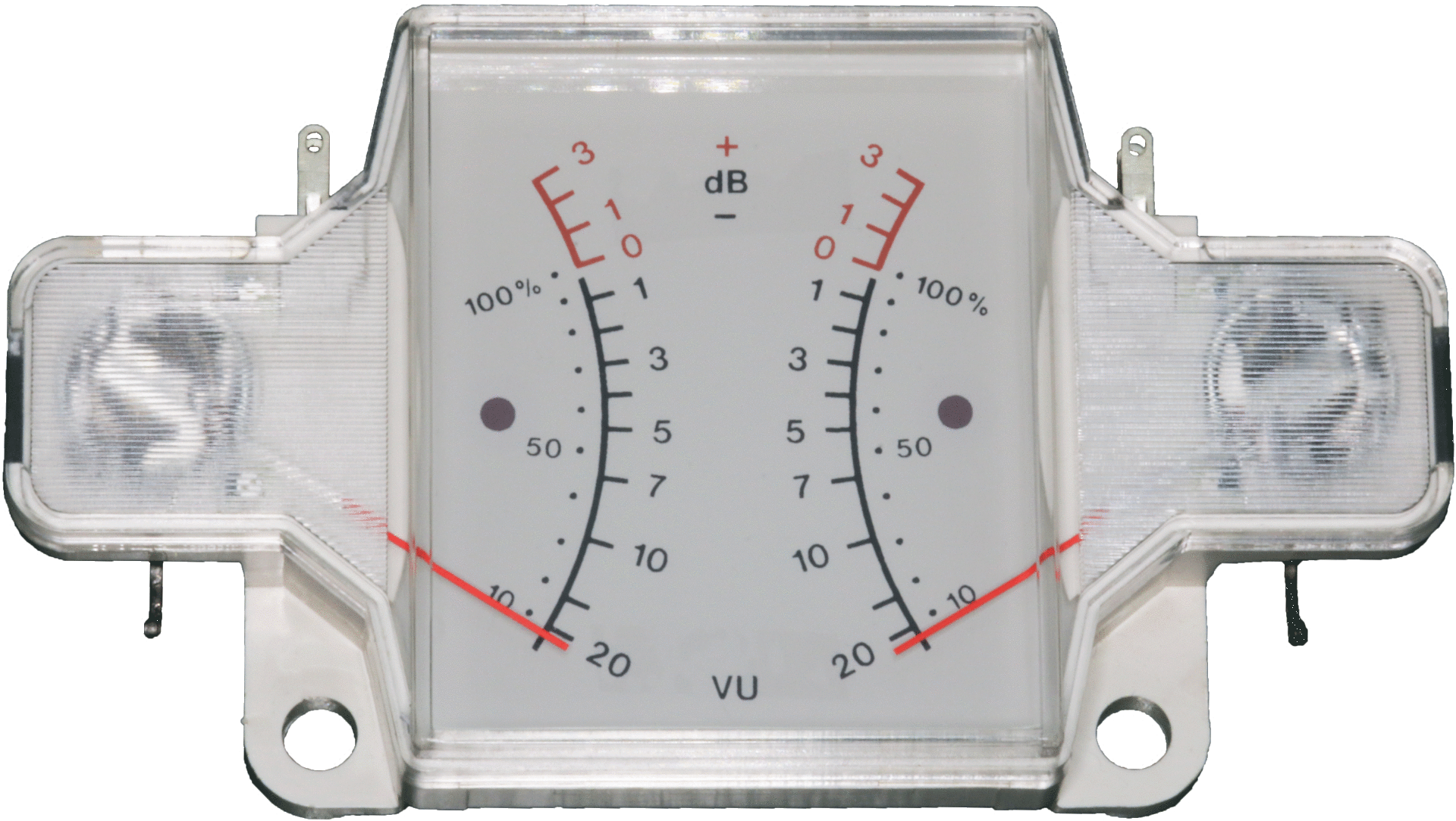

Here too, we can always offer VU meters from repair stocks!

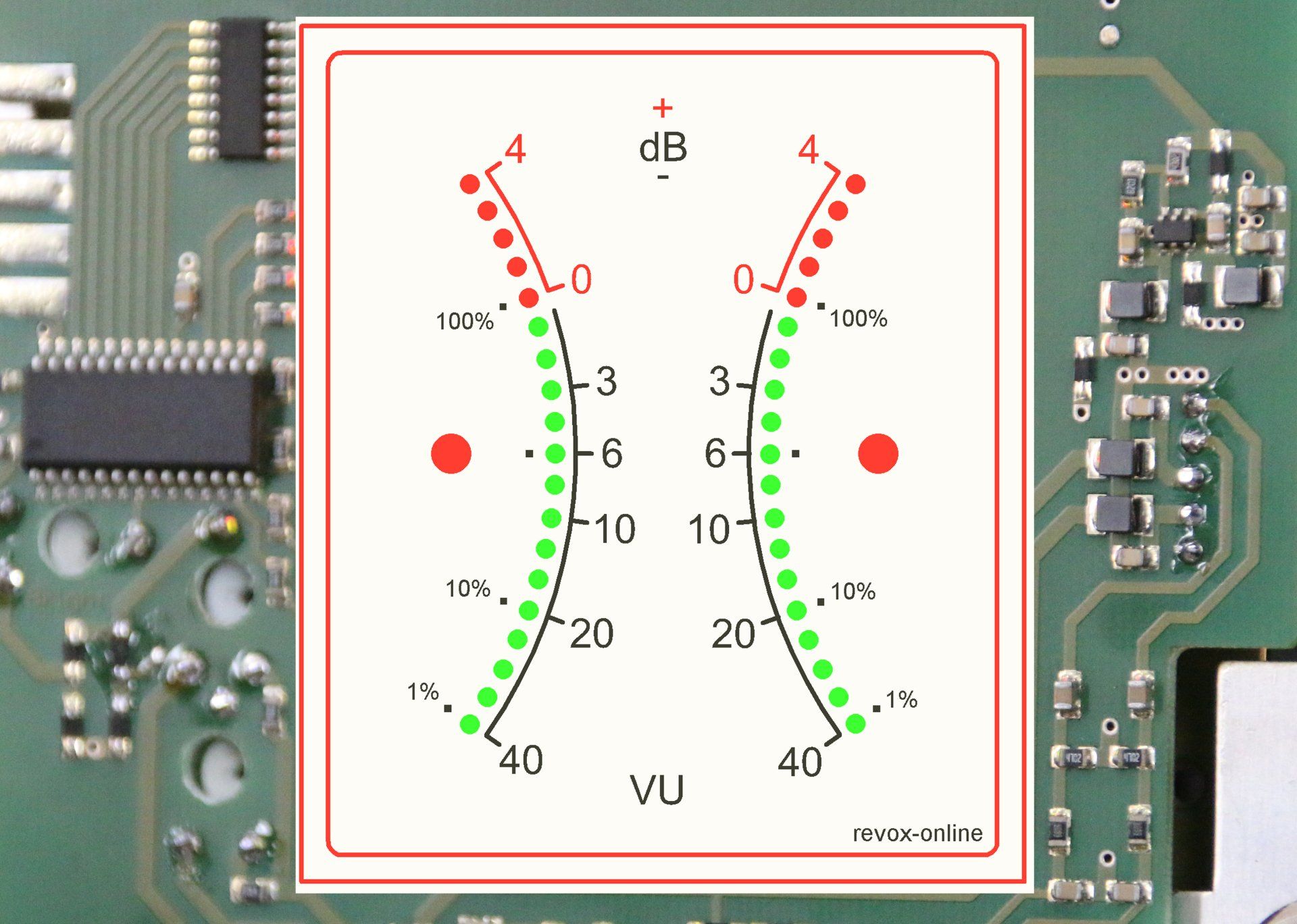

We offer an LED version as a perfect replacement for the analog VU meter. 20 LEDs per channel ensure high resolution.
Overload indicator: Response threshold: 0VU 6dB (514 nWb /m), hold time 0.5 sec.
Installation is done without soldering and is hardly more complex than replacing the analog VU meters!
Accessories for Revox A700

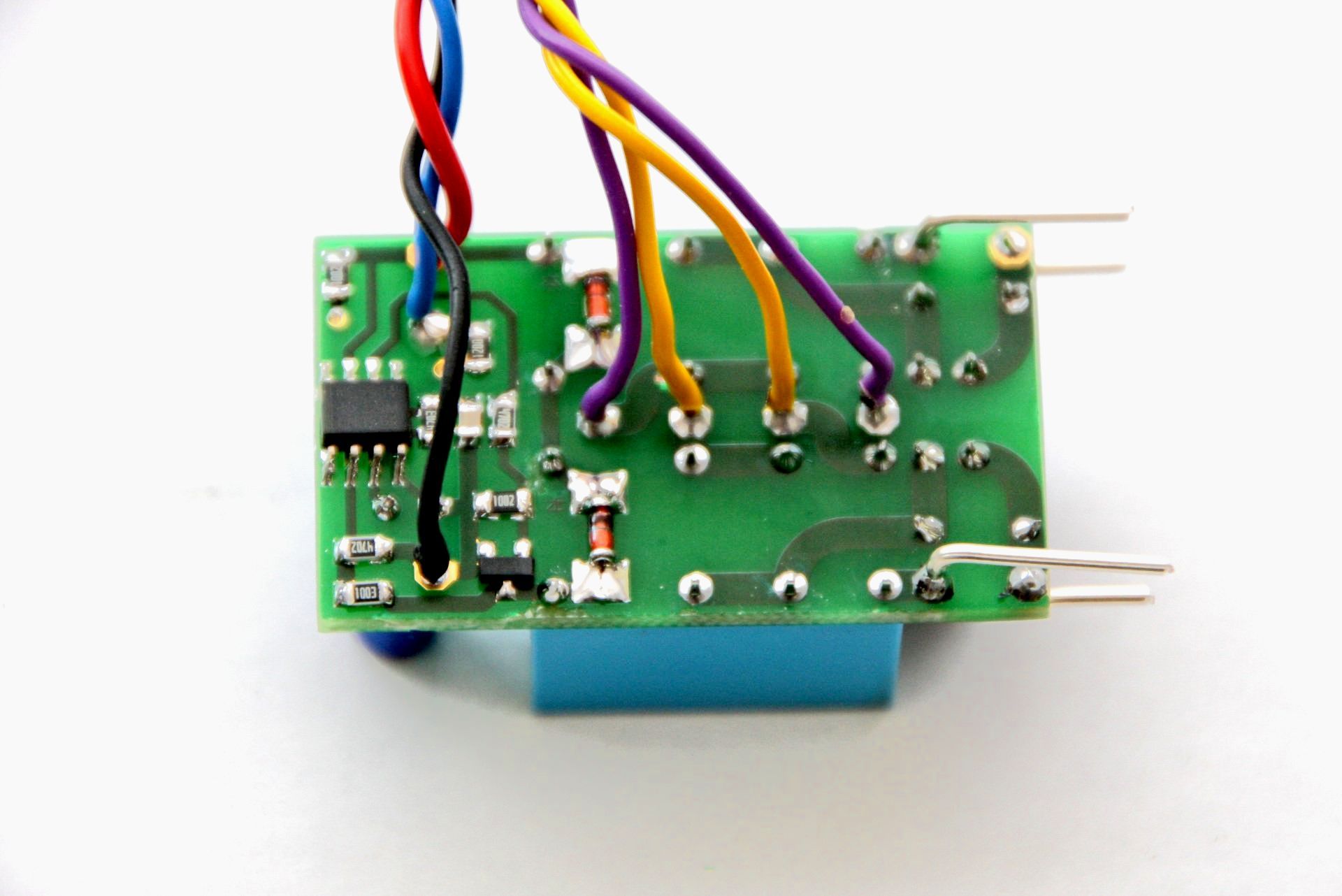

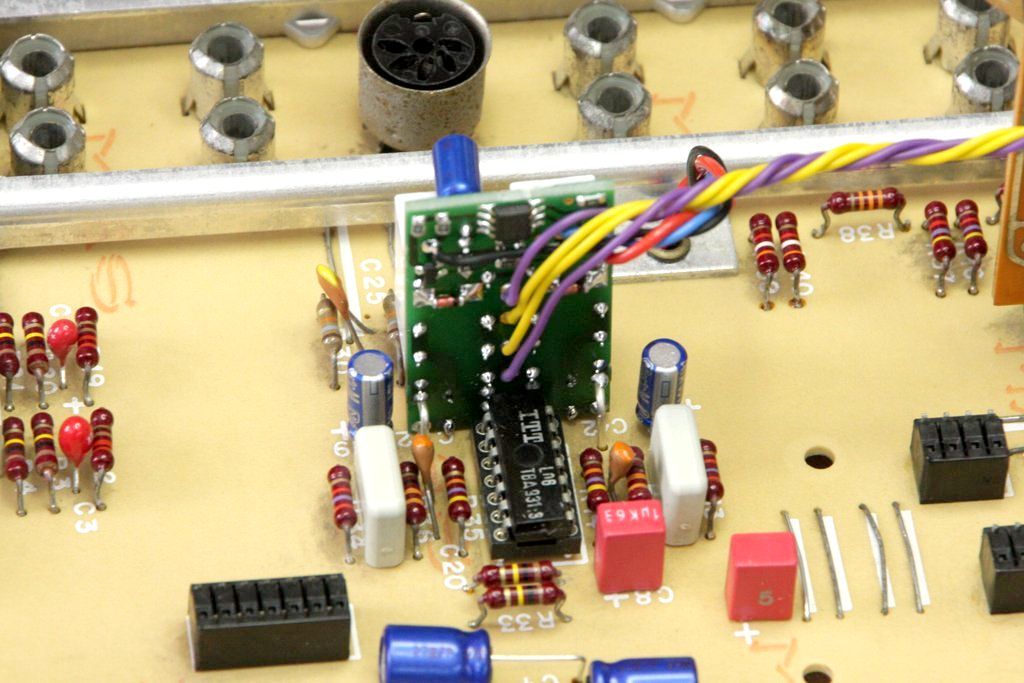

Power-on delay

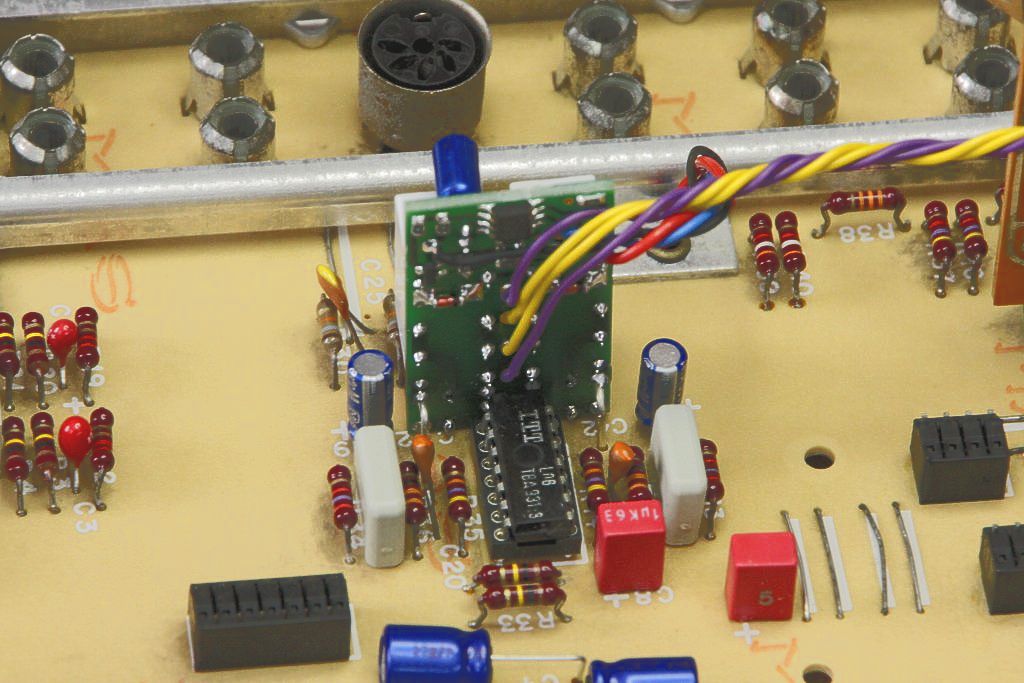

Two capacitors must be desoldered. This switch-on delay replaces the capacitors. It also protects and preserves the analog VU meters, which are no longer available!
Wired remote control
The cable remote control is extremely rare!
LEDs in the cable remote control indicate the status and the currently active function of the Revox A700 on the remote control! The remote control for the queen of tape machines
Spare parts for Revox A700
We have long offered many spare parts for all Revox A700 tape machines. We offer the drive belt for the mechanical counter and the mechanical counter, telephone lamps, capacitor and repair kits, high-quality ball bearings, and relays. We also offer an in-house developed real-time counter for all three speeds, precise LED VU meters, replacements for the 14-pin dual op amps, replacements for the 18V ITT relay, brand new brake bands, and much more!

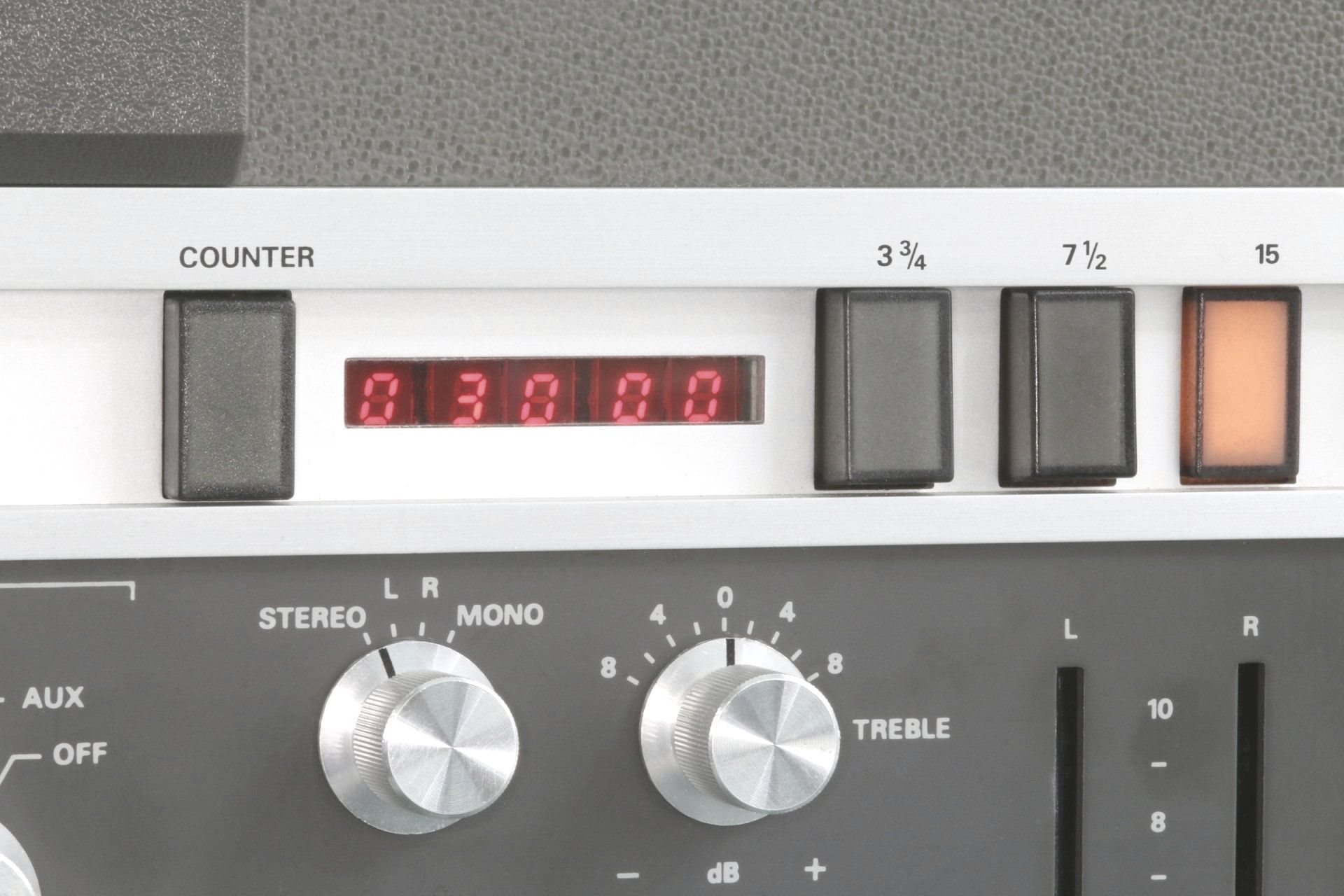

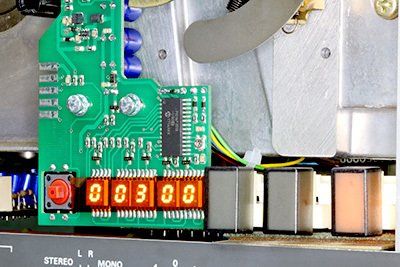

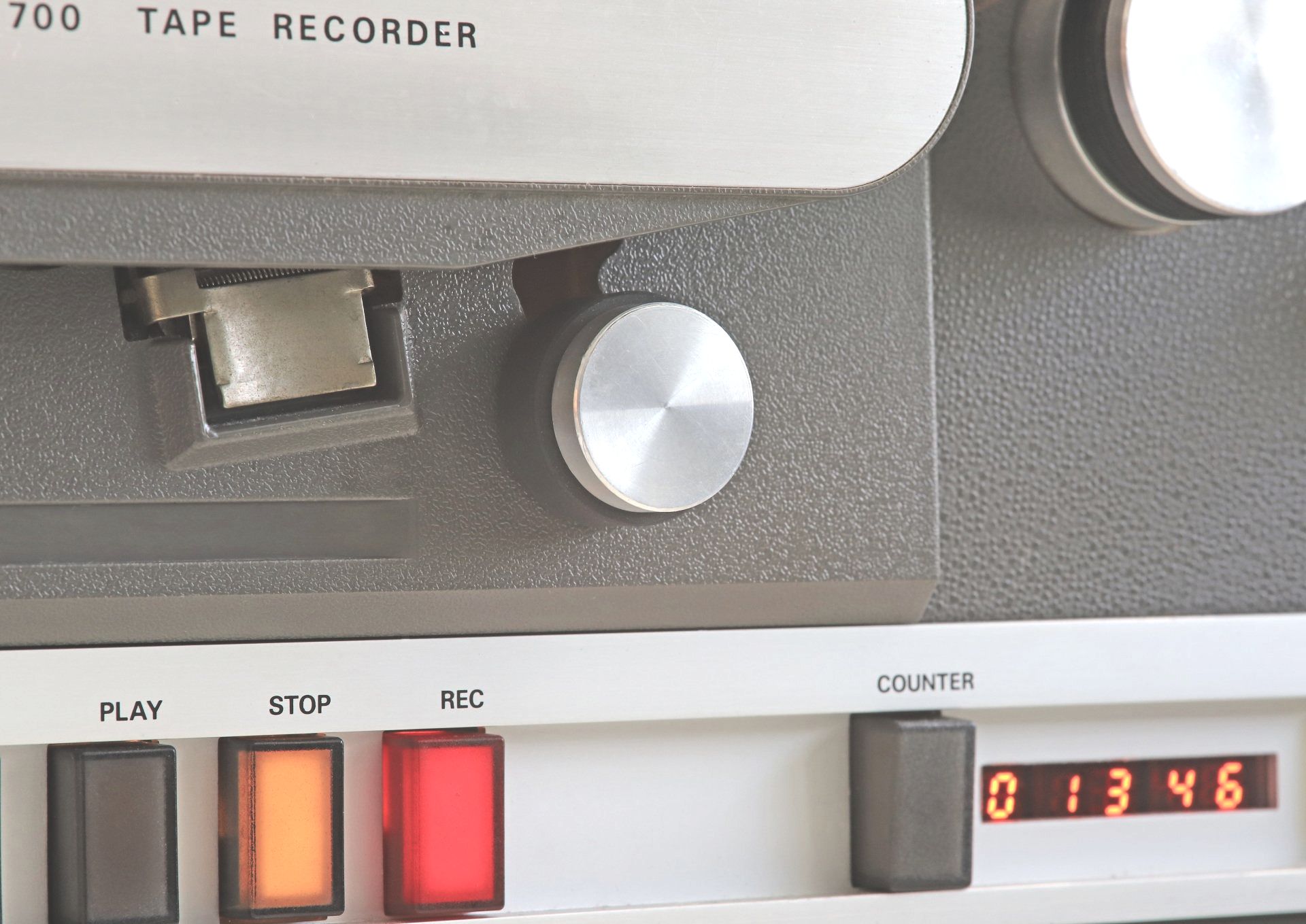

Counter 700
We've been offering the digital counter for all Revox A700s since 2011. Initially, it had four digits. Conversions were necessary for tape speeds of 9.5 cm/s and 38 cm/s. Starting in 2017, we've been manufacturing the counter with five digits. The conversion is automatic!

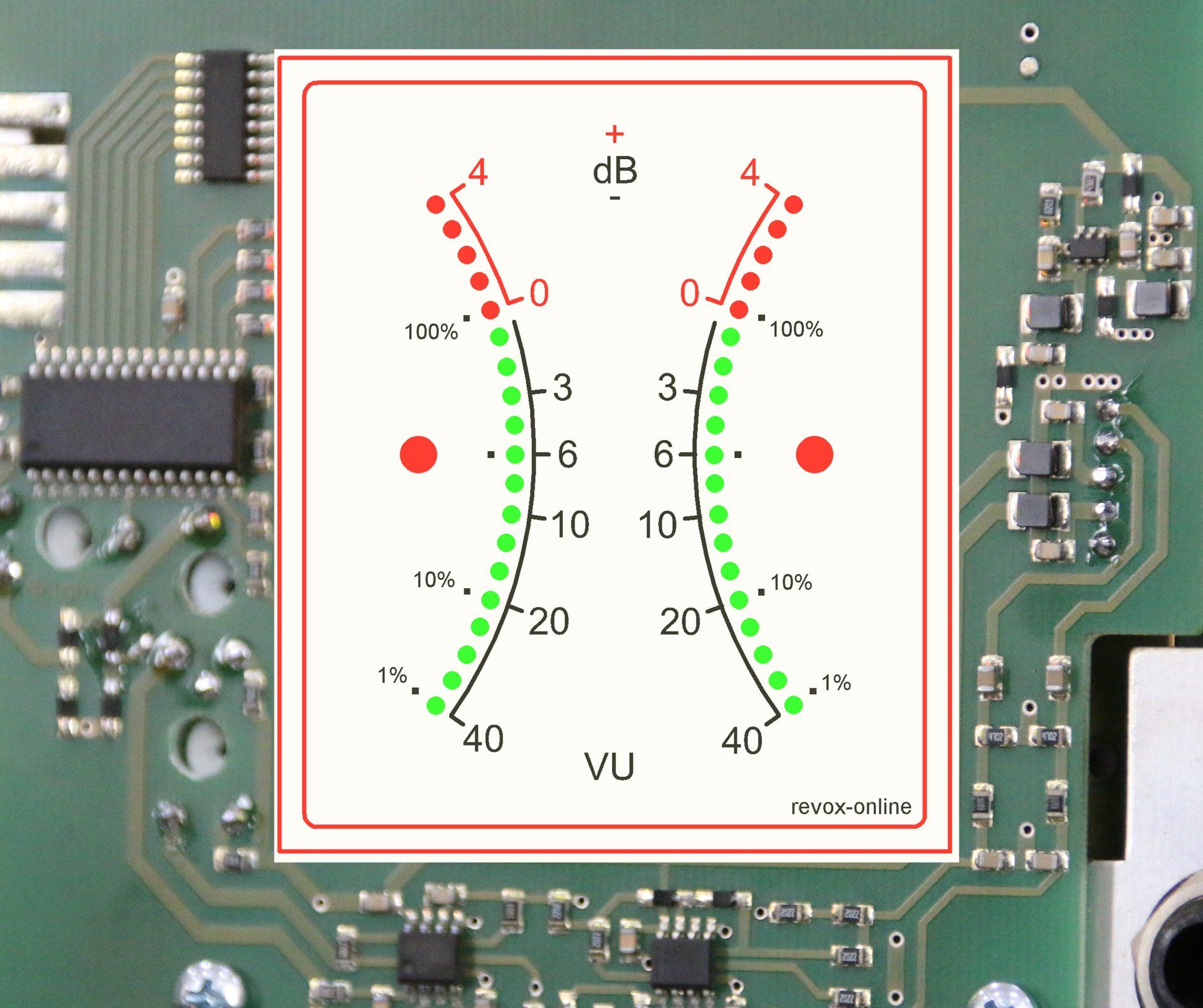

digital VU meter
VU meter in LED technology for all Revox A700.
2 x 20 LEDs ensure a very high resolution.
With overload display at 6 dB, 6 dB and -6 dB are on the same line.

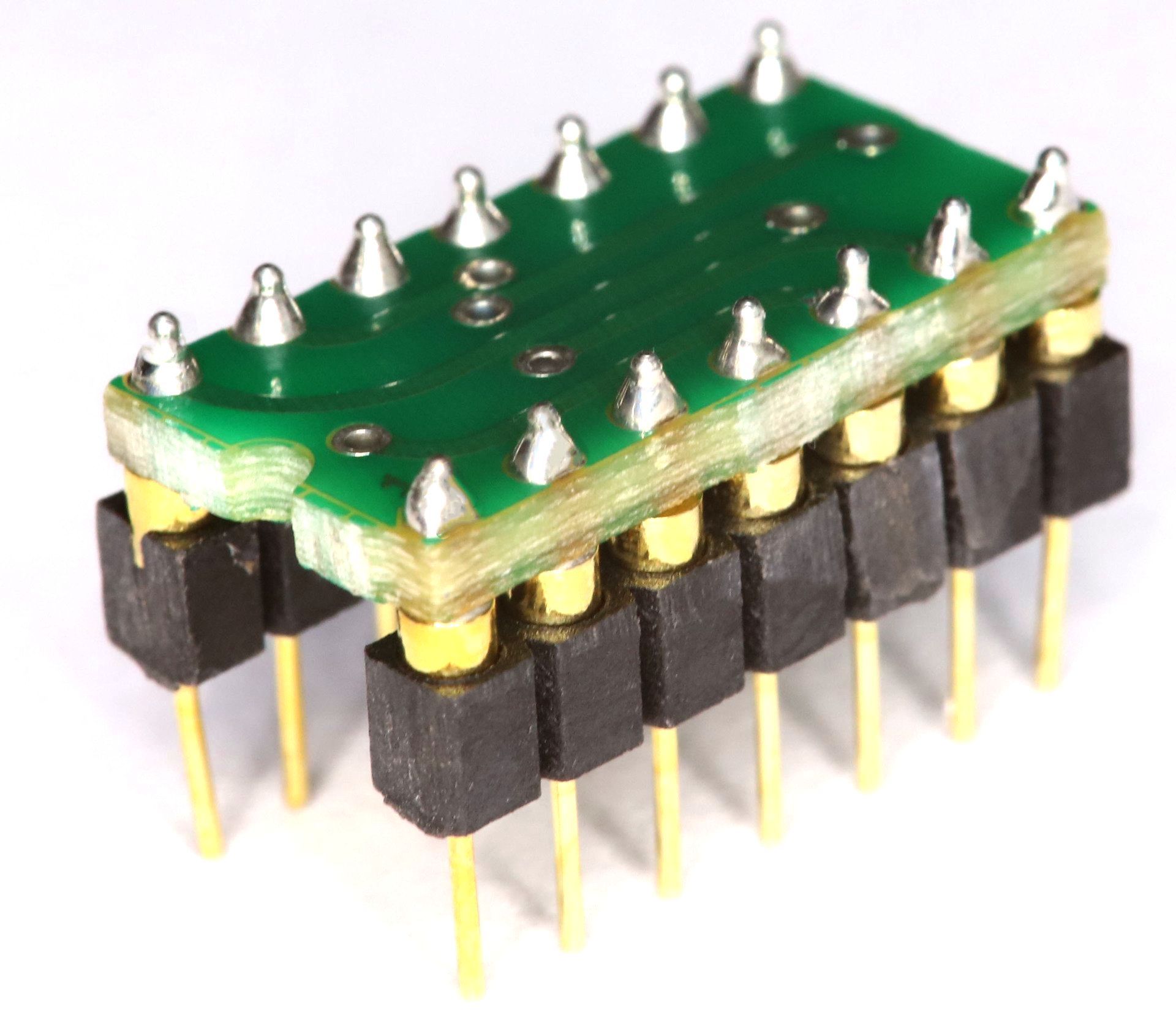

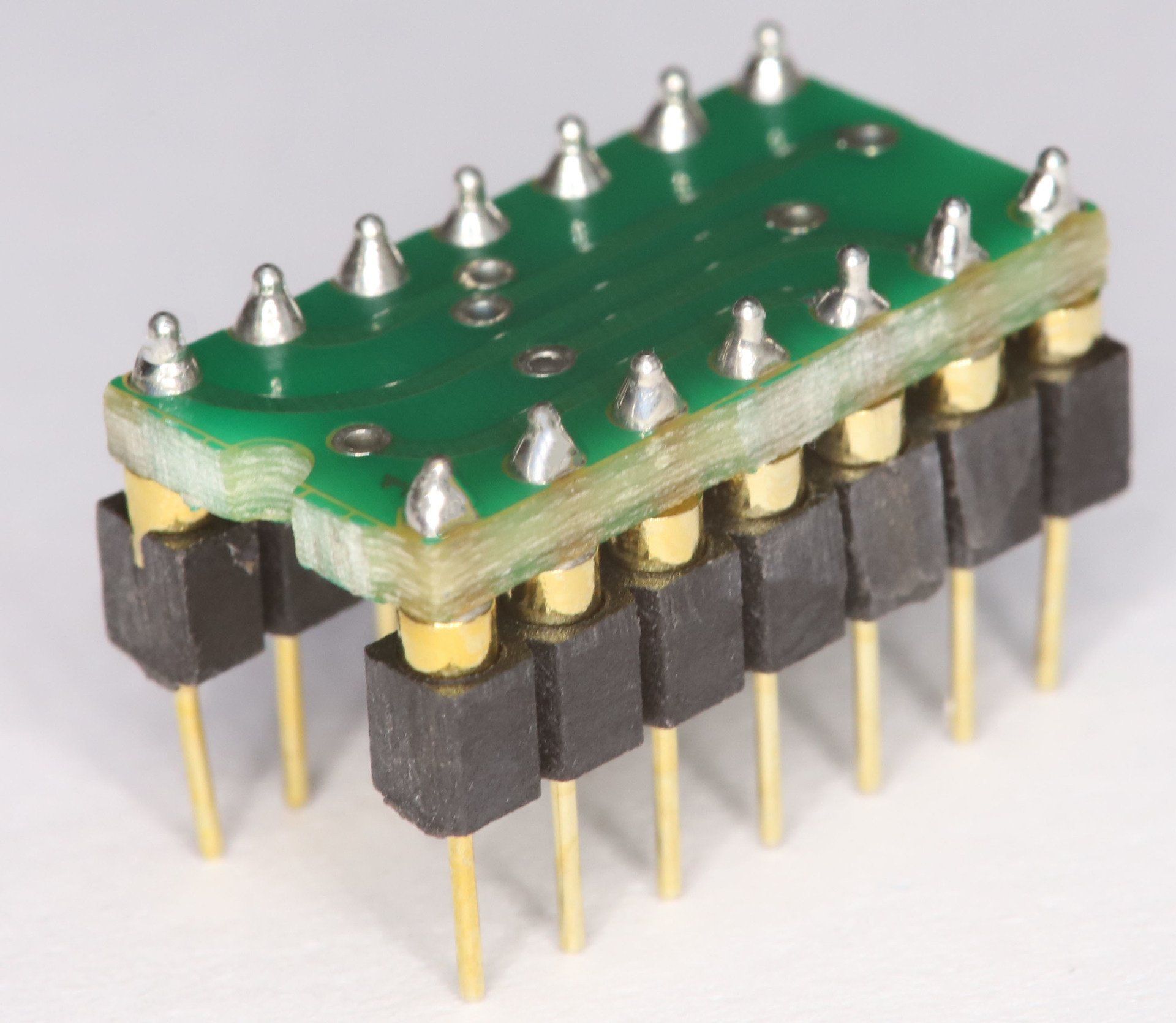

dual op-amps
Since 2008, we have been offering a professional replacement for the dual op amps in the 14-pin package. We offer the replacement in four audiophile versions: NE 5532, OPA 2134, LM833, and LME 47920.This little circuit from ums is now being reproduced in many places. One even produced a 100% copy with round circuit paths. There's also a wired version! Why?

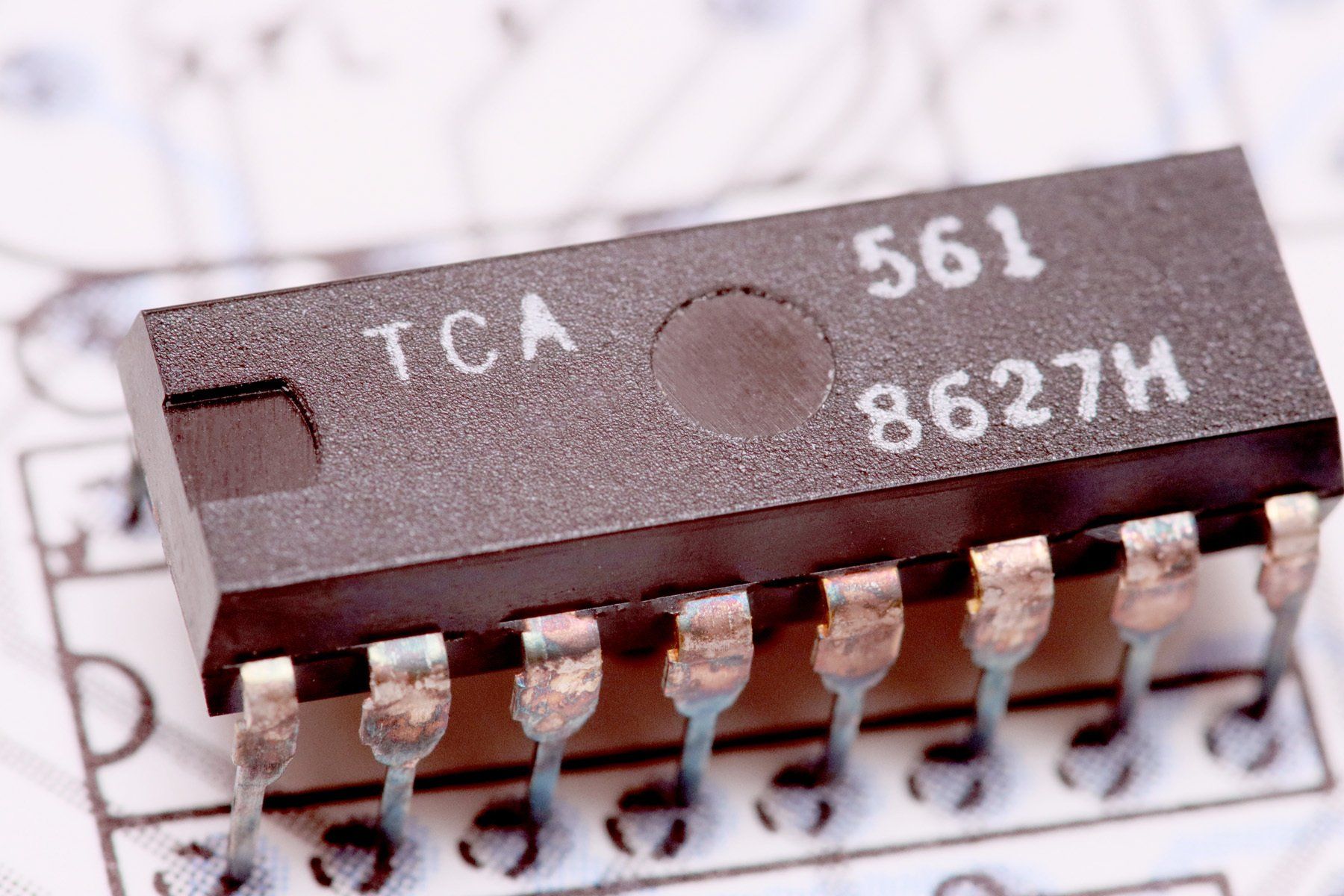

TCA 561
With the replacement of the TCA 561 IC, the last critical point for the preservation of the Revox A700 tape machine has been eliminated! Thanks to our counter, VU meter, TDA1000, and now the replacement for the TCA561, we at Premium-Hifi are almost always able to successfully repair it! This ensures the preservation of the Revox A700.

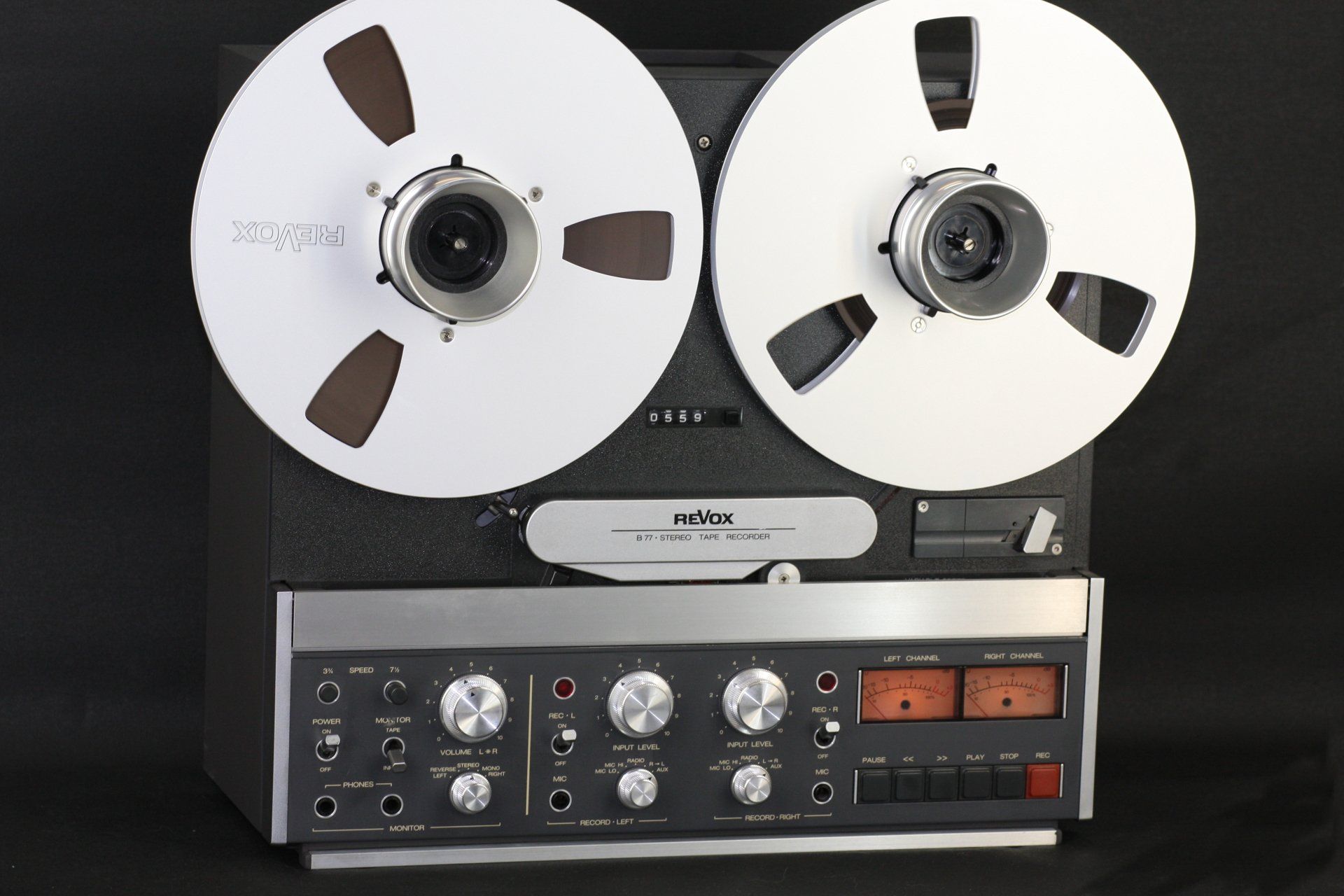

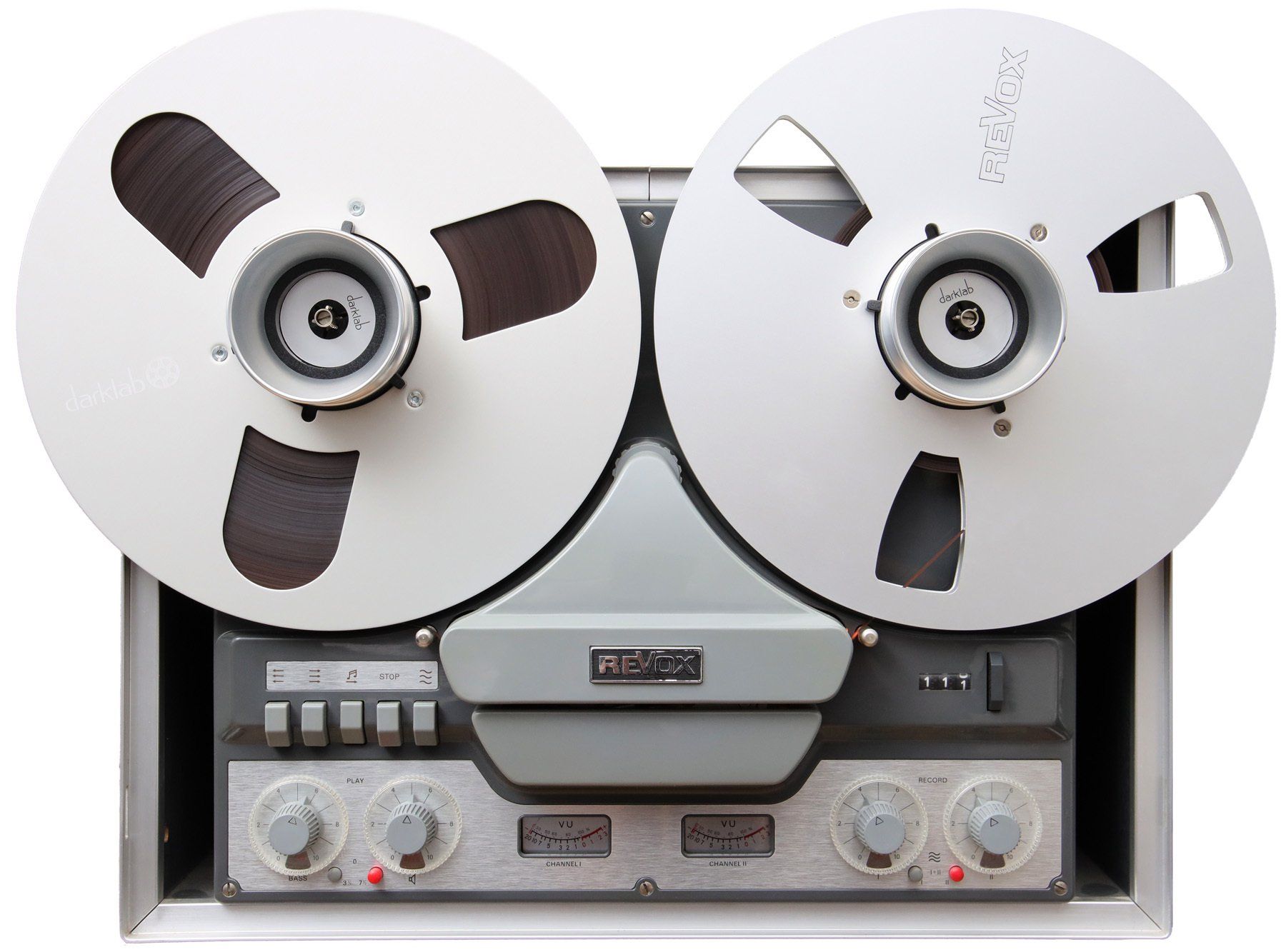

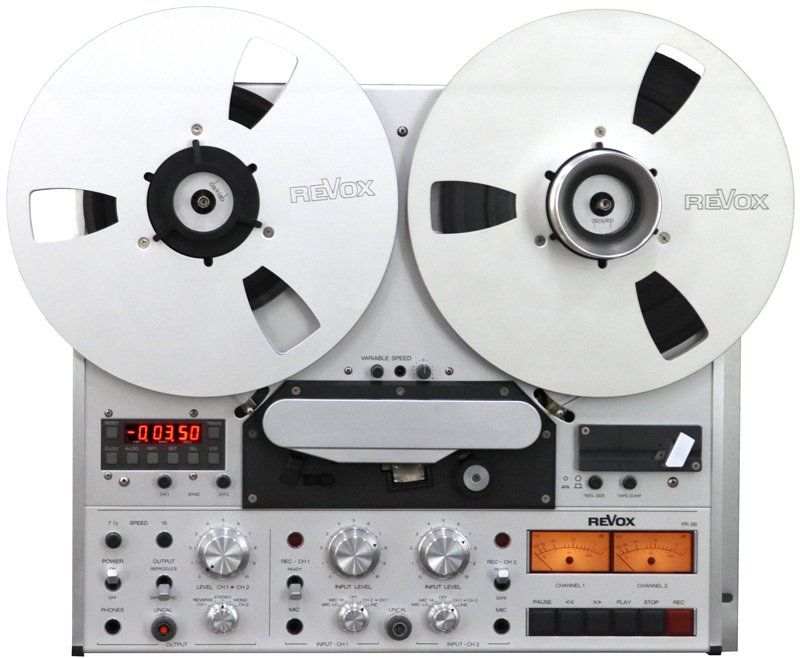

other Revox tape recorders
