Equalization circuit boardsfor all Studer A80 and B62
For recording and playback
We offer you the equalization boards fully assembled for every equalization of recording and playback.
Of course, we also offer these circuit boards in the highest quality and using SMD technology.
1.081.880

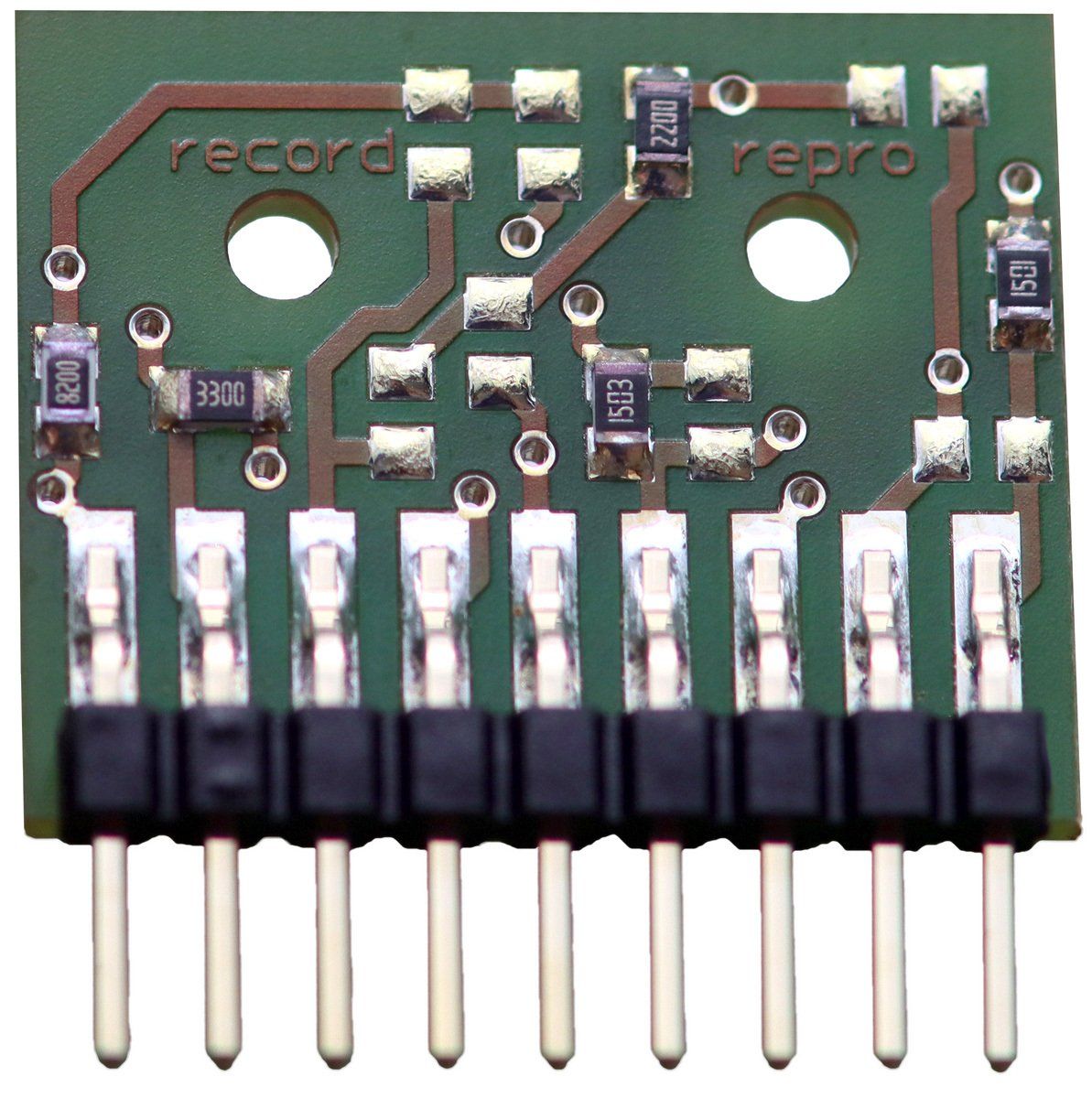

The photo shows the equalization for the recording
with NAB and 38 cm/sec and 76 cm/sec.
An unusual combination, high speed and then NAB equalization!
The equalizations are:
CCIR with 19 cm/s and 38 cm/s
NAB with 19 cm/s and 38 cm/s
CCIR with 9.5 cm/s and 19 cm/s
CCIR with 38 cm/s and 76 cm/s
NAB with 38 cm/s and 76 cm/s
1 set (4 pieces)
To change the speed or equalization, you always need two circuit boards for recording and two circuit boards for playback. If you're "just" repairing, the circuit boards should be replaced in pairs. So, you need two recordings or two playbacks.
As with Studer's A101 hybrid amplifier module, SMD technology is clearly an advantage here too.

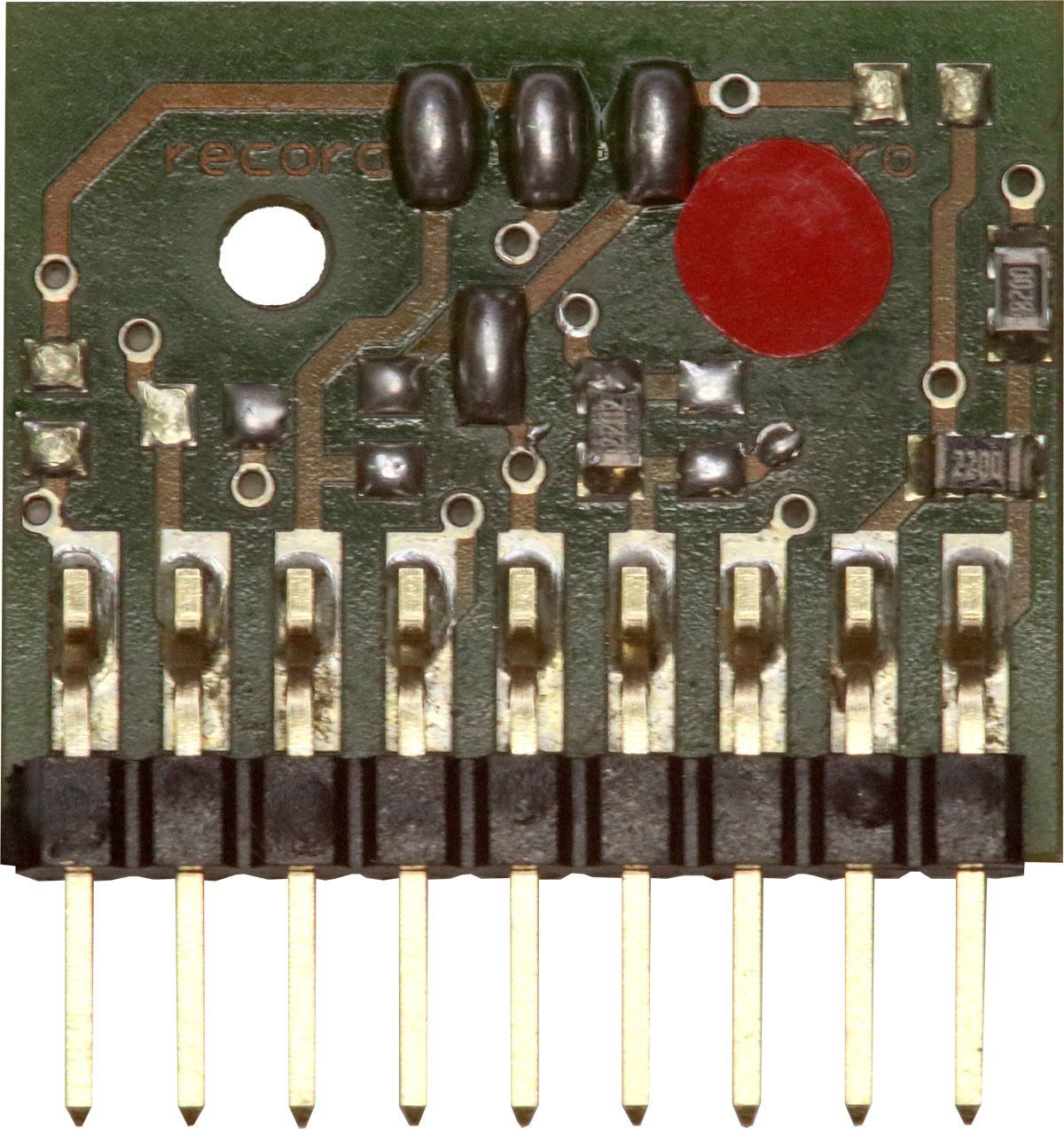

Recording equalization
The following equalizations are available for the Studer A80:
CCIR 19 cm/s and 38 cm/s 1,080,920
NAB 19 cm/s and 38 cm/s 1,080,922
CCIR 9.5 cm/s and 19 cm/s 1,080,924
CCIR 38 cm/s and 76 cm/s 1,080,926
NAB 38 cm/s and 76 cm/s 1,080,928
NAB 38 cm/s and 76 cm/s 1,081,880
Playback equalization
The following equalizations are available for playback:
CCIR 19 cm/s and 38 cm/s 1,080,921
NAB 19 cm/s and 38 cm/s 1,080,923
CCIR 9.5 cm/s and 19 cm/s 1,080,925
CCIR 38 cm/s and 76 cm/s 1,080,927
NAB 38 cm/s and 76 cm/s 1,080,929
NAB 38 cm/s and 76 cm/s 1,081,881
NAB 38 cm/s and 76 cm/s 1,081,882
the correct installation

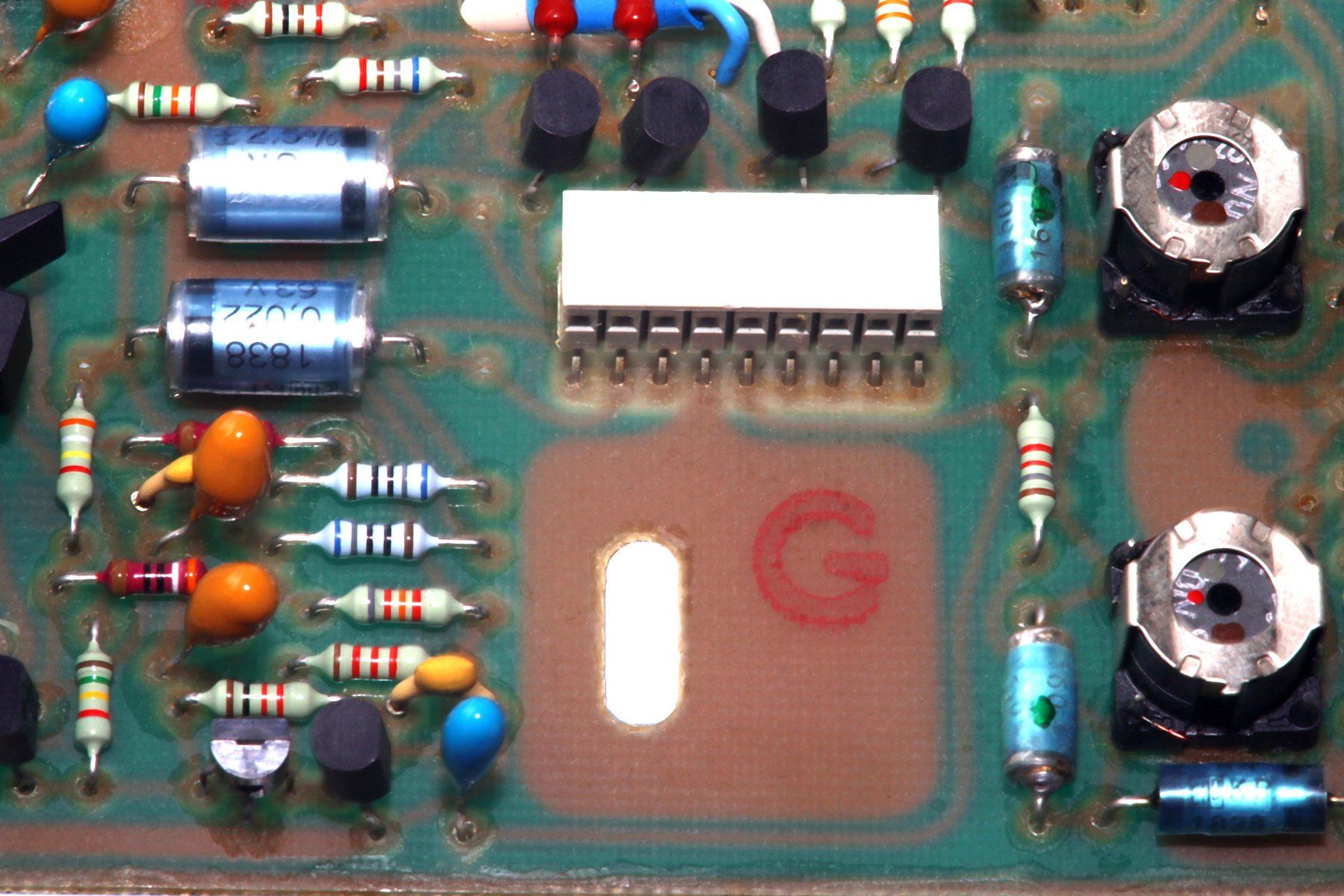

slot
Slots for equalization are provided on the circuit boards of the recording 1.080.982 and the playback 1.080.986. Four equalization circuit boards are required for the Studer A80.
The coding is done through a slot in the recording and playback circuit boards
Coding

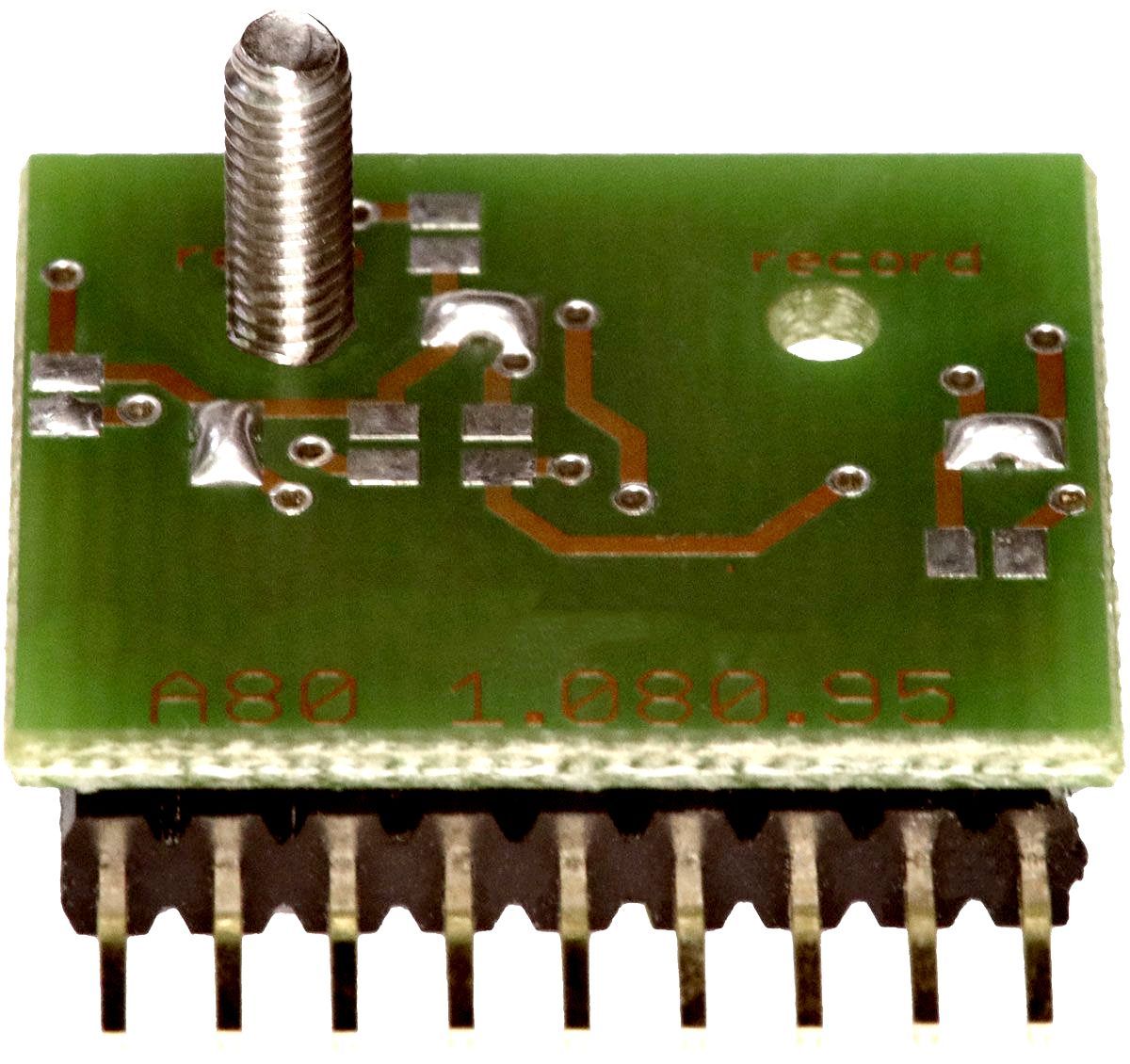

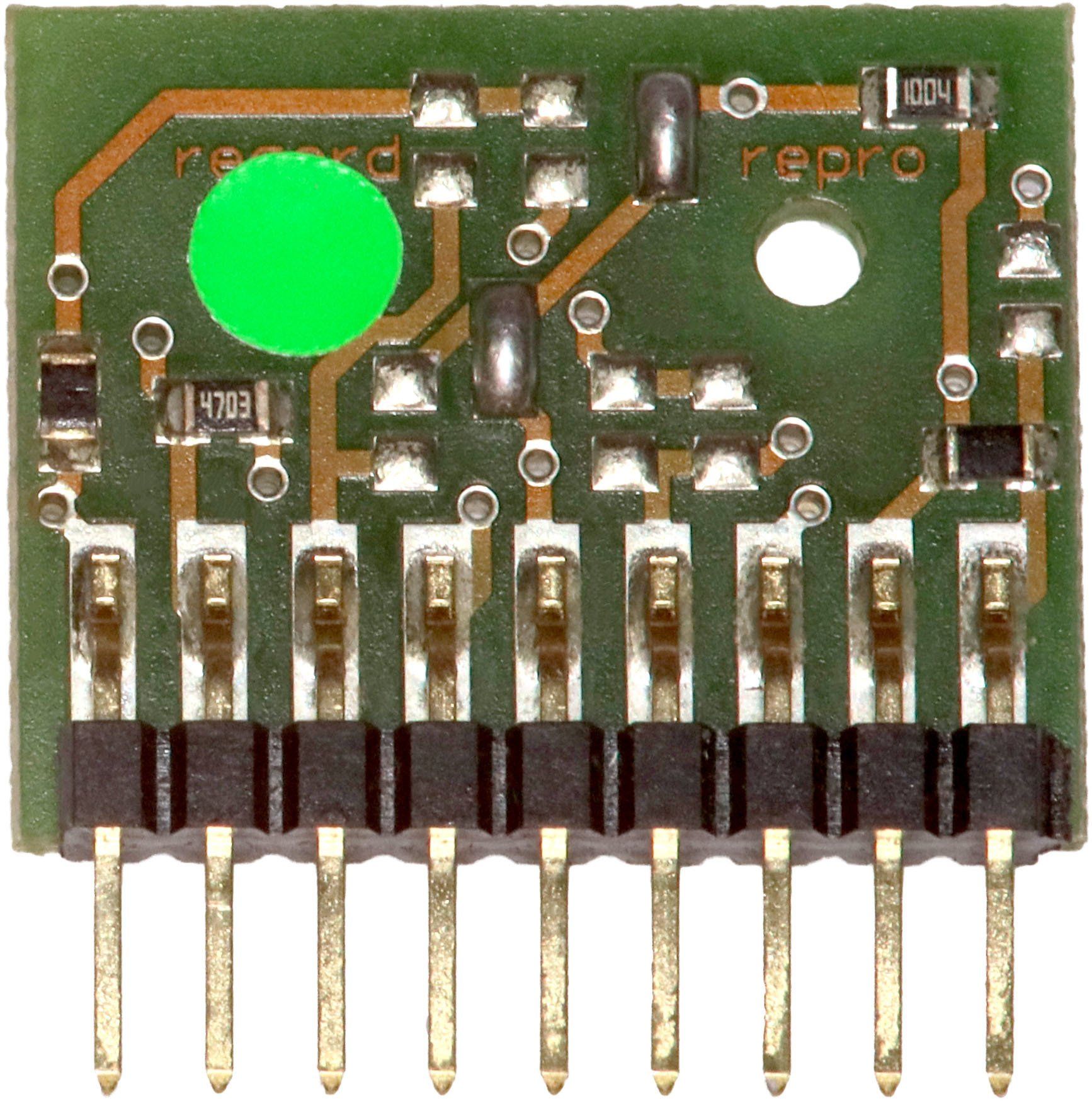

The original Studer equalization boards were coded using a pressed-in pin. We will only leave the appropriate opening free and color-code the other opening (red for the recording equalization and green for the playback equalization). The circuit boards are too small to label the type of equalization and its speed.
Installation

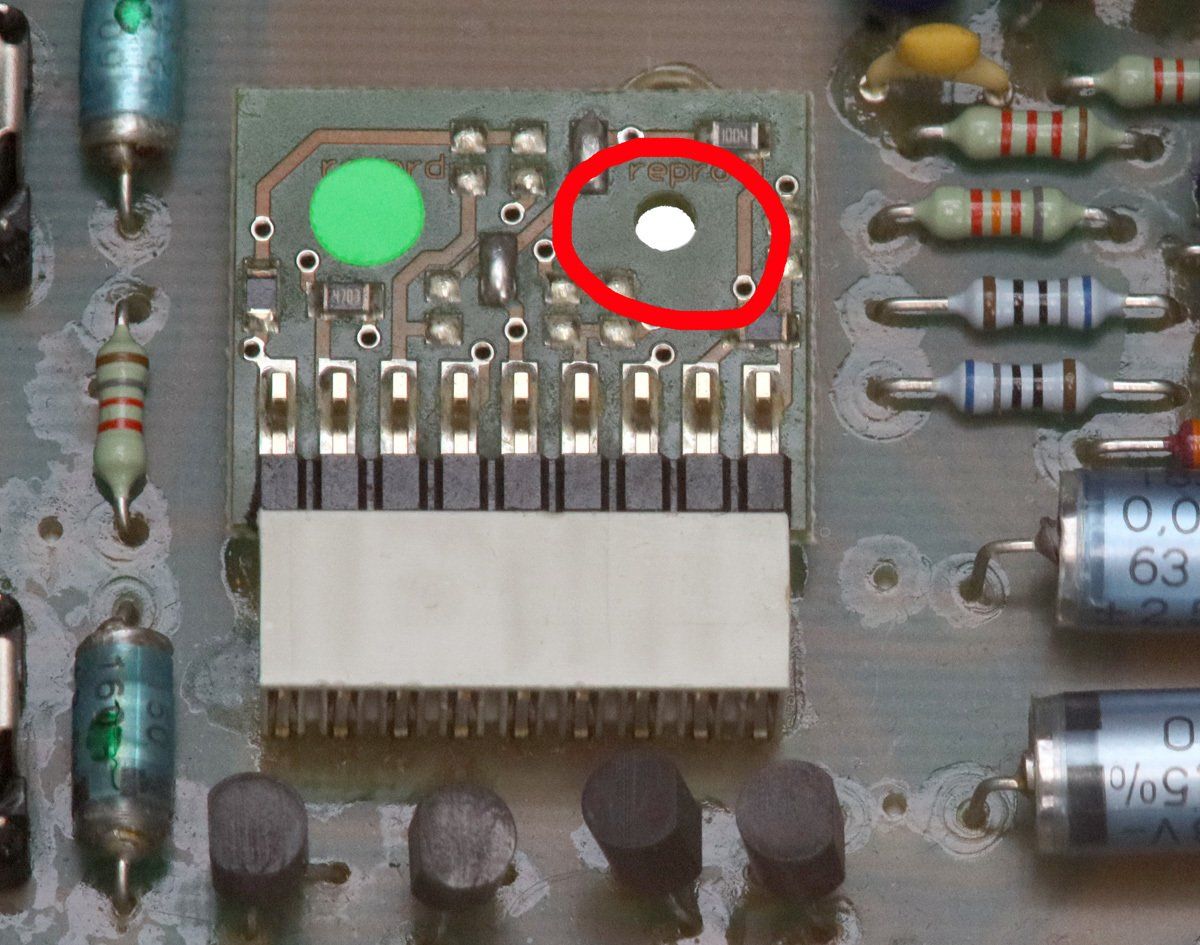

If the free hole on the equalizer board and the slotted hole on the Studer recording or playback board are aligned, the combination is correct. The color scheme (green for playback and red for recording) should also match.
Shipment

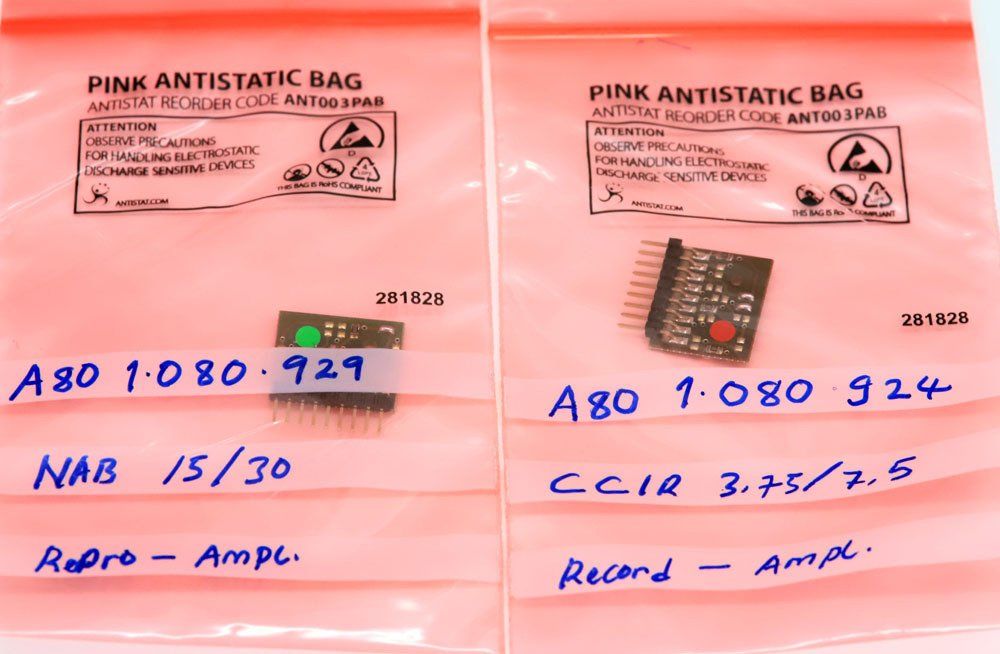

The circuit boards are also shipped in labeled ESD bags with the equalization, speed and Studer article number.
This should prevent any confusion even years from now!
additional spare parts for Studer A80 and B62

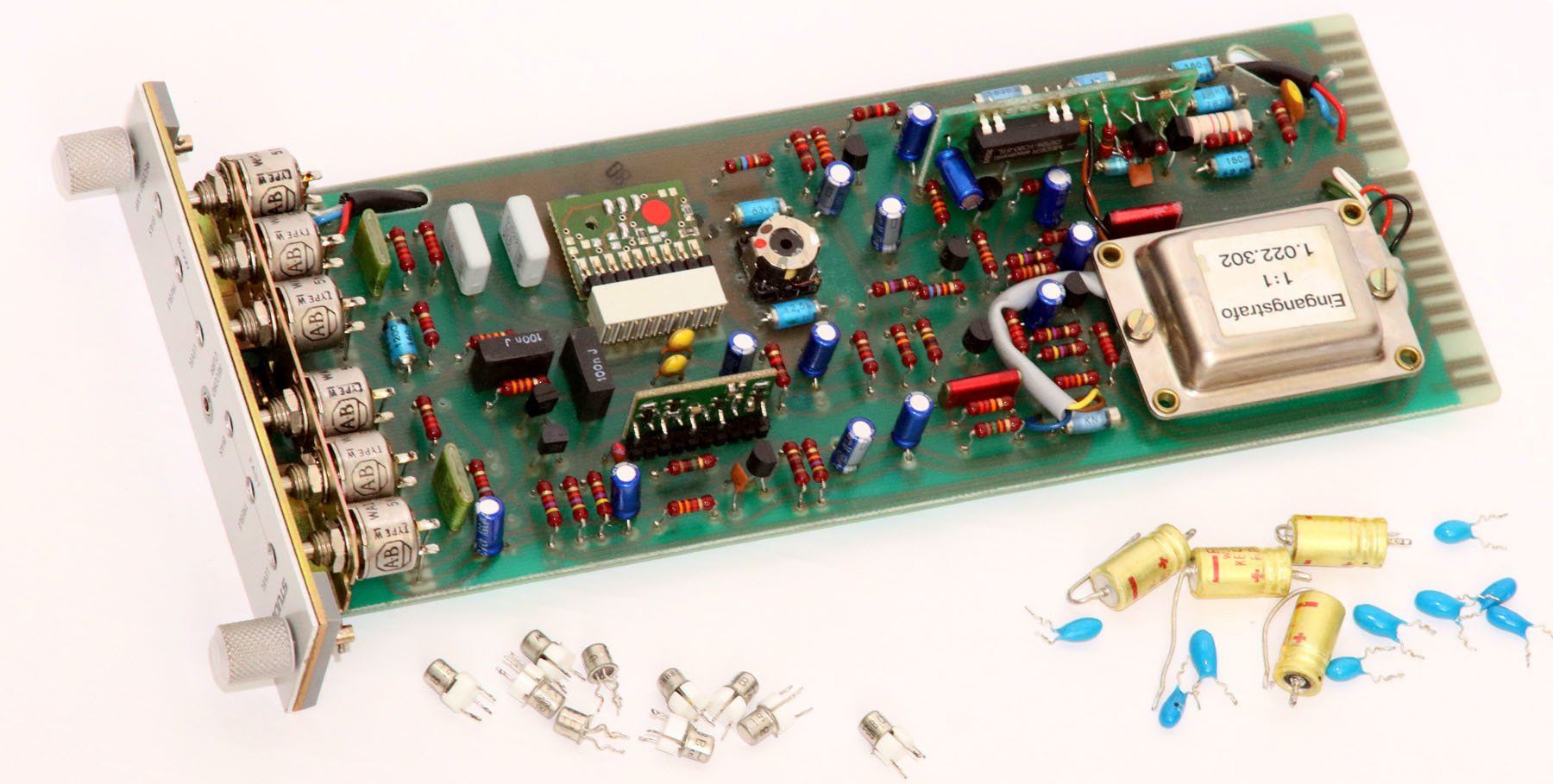

Repair kits
We offer a variety of repair kits for the Studer A80 and B62, including a comprehensive range of useful repair kits. These include complete audio relay kits, replacement kits for the record and playback boards, and repair kits for the audio cards and drive controls. Many of these replacement parts are manufactured specifically for us or by us. See ITT replacement relays, the best replacement for the A101 hybrid amplifier, or the excellent EQ boards.
capacitors
In addition to the equalization, the hybrid amplifier module and all electrolytic capacitors were also replaced. The components should always be replaced on both Record (1.080.982) or, as shown in the photo, on both Reproduce (1.080.986) circuit boards.
Repair kit
Here, all electrolytic capacitors, transistors, the equalization board, the hybrid amplifier, and the relay were replaced. This is a complete overhaul for us!
A "refurbished by the seller" circuit board is now being offered on eBay for €333. In fact, only the relay was replaced!
Old and new
Below, our completely overhauled record board features new audiophile electrolytic capacitors, low-noise transistors, an SMD-equipped hybrid amplifier, a new equalization circuit, and the DIP relay. The record board is barely recognizable! The
is, in our opinion, a general overhaul!
