The transformer
toroidal transformer
for all Revox B750 and B750 MK II
Why do Revox transformers tend to hum?Well, many amplifiers from other manufacturers don't even get old enough for the transformers to start humming!The integrated amplifier Revox B750 was launched in 1977 at the same time as the tape machine Revox B77 and the tuner B760on the market and are therefore over 48 years old.
The cut-band transformers used by Revox are already excellently suited for audio applications. However, toroidal transformers are still the better choice in the audio sector. Toroidal transformers offer comparatively high efficiency, which is particularly important here, while being compact and producing a very low stray field.Only with a toroidal transformer can the Revox B750 amplifier also drive speakers like "Quadral Titan" or "Infinity Cappa" confidently!
Installation in Revox B750

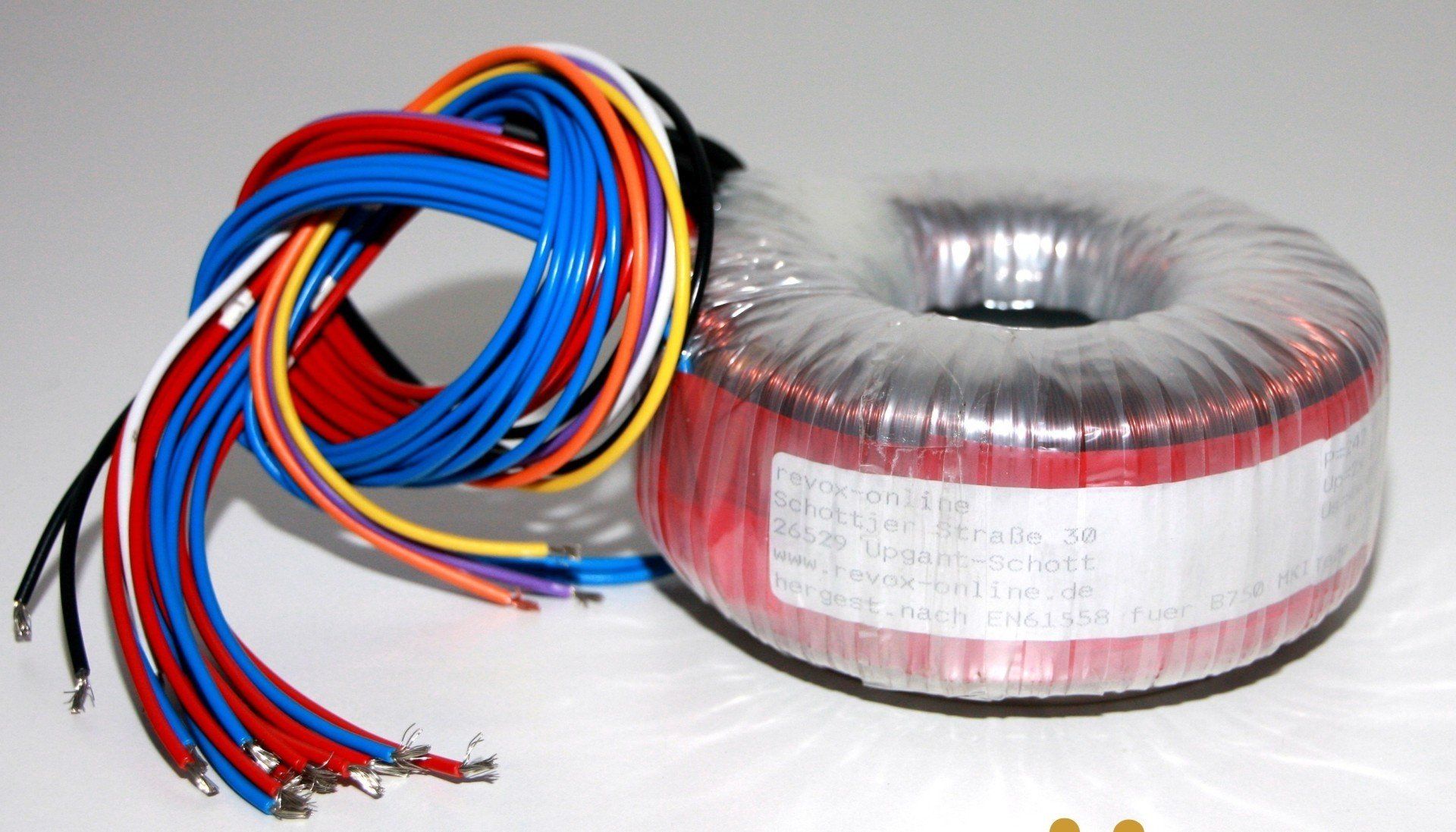

370 VA
is the performance of the new toroidal transformer.
This means there is more power than is needed.
The old transformer
must first be expanded.
To do this, all cables coming from the transformer are cut off at the voltage selector switch. Then, all other connections to and from the transformer are removed, and the transformer is unscrewed and removed.
The new transformer

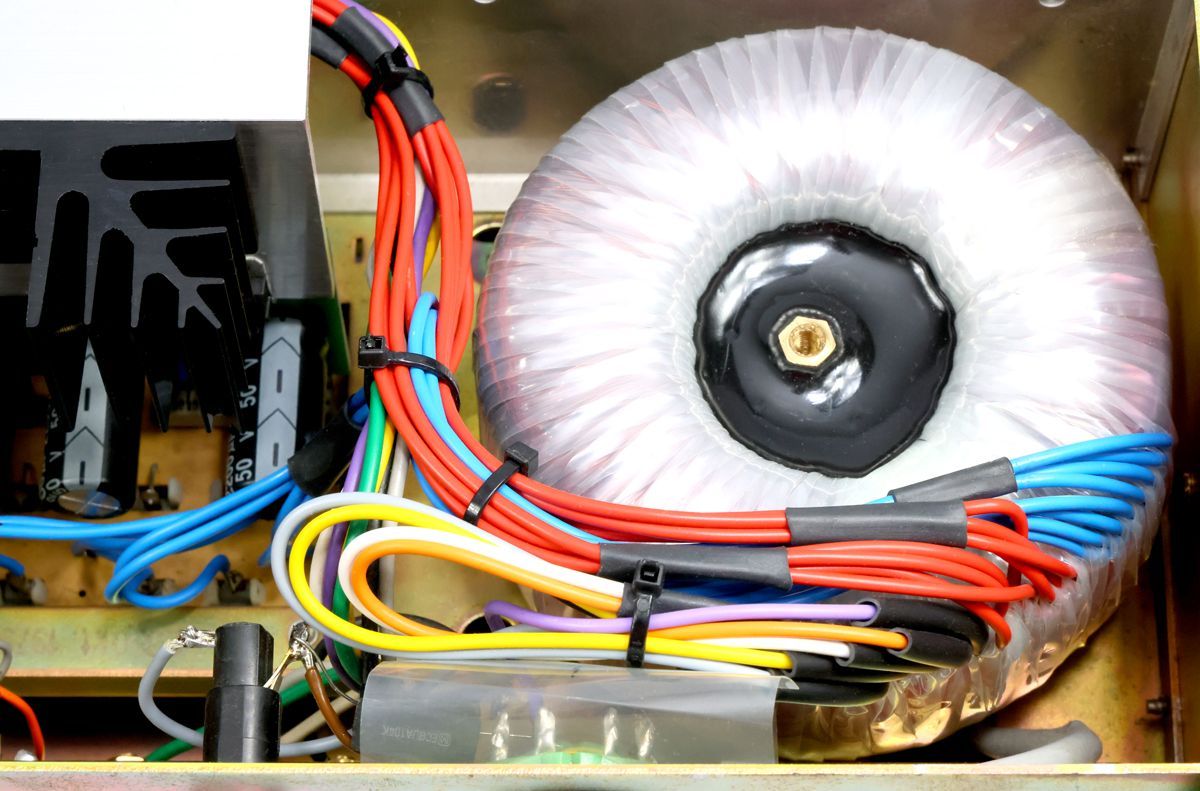

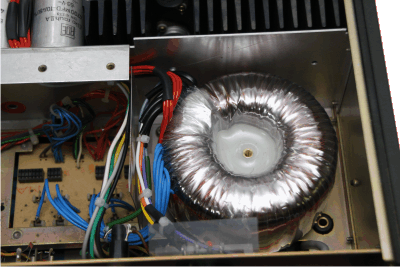

can be installed after removing the old transformer. To do this, first mark the hole for the central mounting, drill a 5 mm hole, and screw the transformer in place using one of the existing screws.
The strands

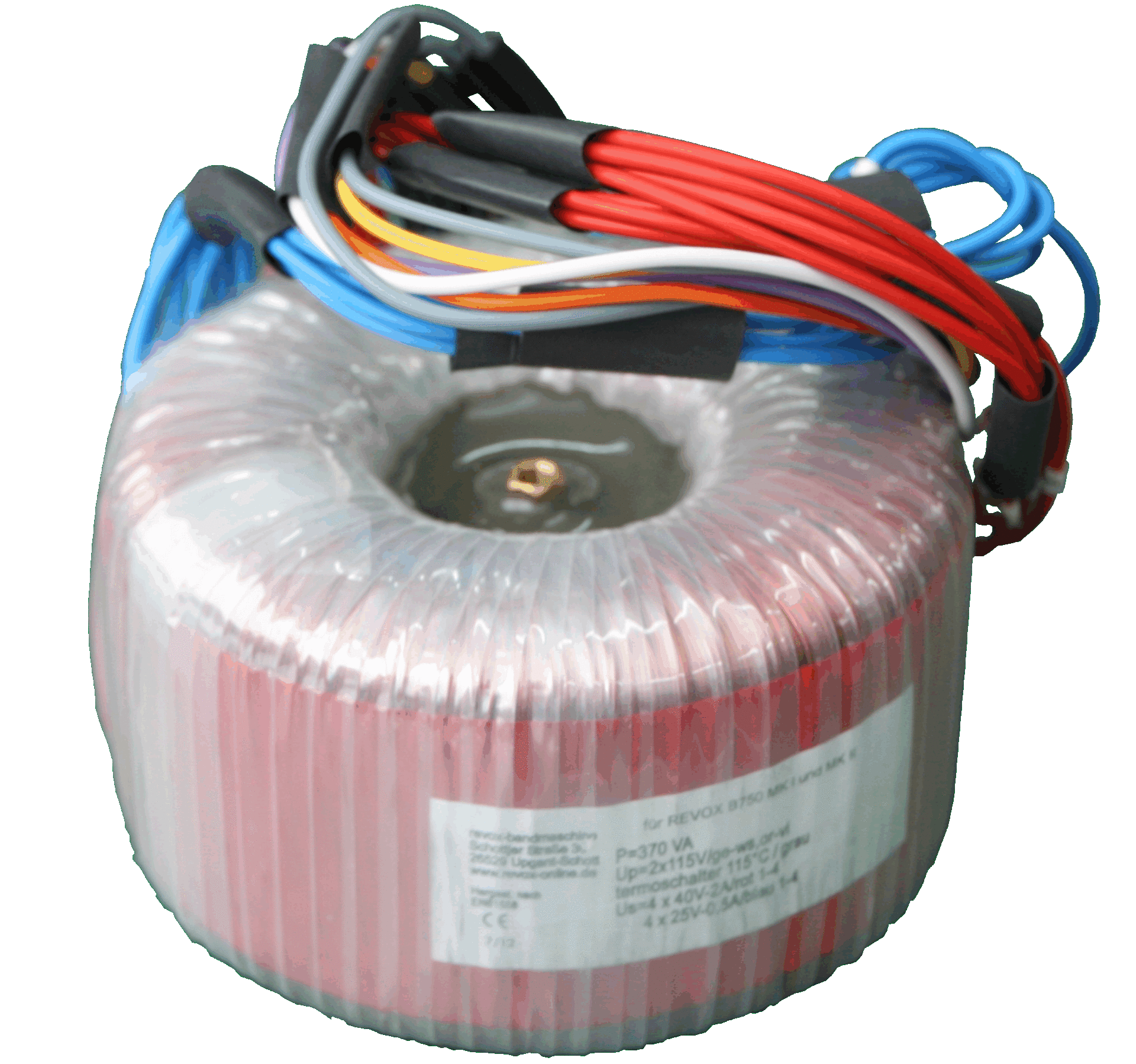

We pre-assemble them and group them together. The wires of the power amplifiers (red) are fitted with 2.8 mm x 0.8 mm flat connectors. We manufacture the transformers according to the currently valid EU standard EN 61558.
The transformers are CE compliant!
The transformers are CE compliant!
Work with extreme caution and concentration and have the work checked by a professional.
We assume no liability for your work!
Embarrassed
Bundle all the wires and route them so that they won't chafe or cause short circuits. You'll receive sufficient heat-shrink tubing and cable ties for this purpose.The instructions describe all the necessary steps in detail.
Power socket
To guide the new wire through the protective sleeve to the power connector, the new and old wires are soldered together and then pulled through. Please observe all requirements of Protection Class II. The connections must not come loose on their own, even under extreme heat. To do this, the wire is pulled through the eyelet, twisted, and then soldered.
Transformers in our shop
Here you will find toroidal transformers for
Studer and Revox devices.
